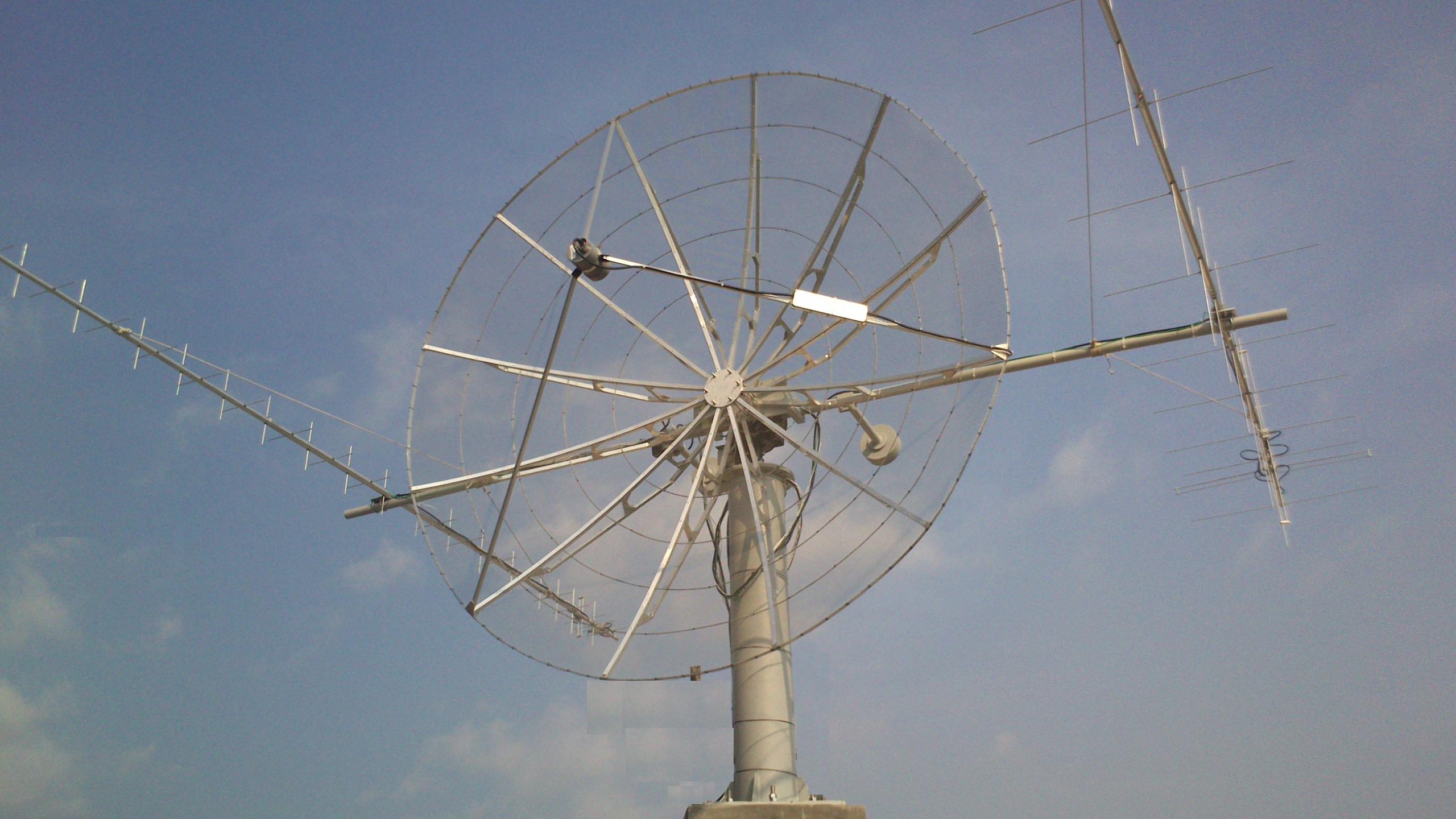

Ground Station

The Ground Station is a generalized open frame architecture designed by Data Patterns.
It has two independent uplink and downlink communication channels. The generic design makes the control of parameters like frequency, modulation scheme, data rate and others simple. Common communication standards like HDLC, AX25 and CCSDS are readily supported by the ground station systems.
The features and the flexibility of the design gives a complete and straight forward solution to communicate and control the satellites in orbit.

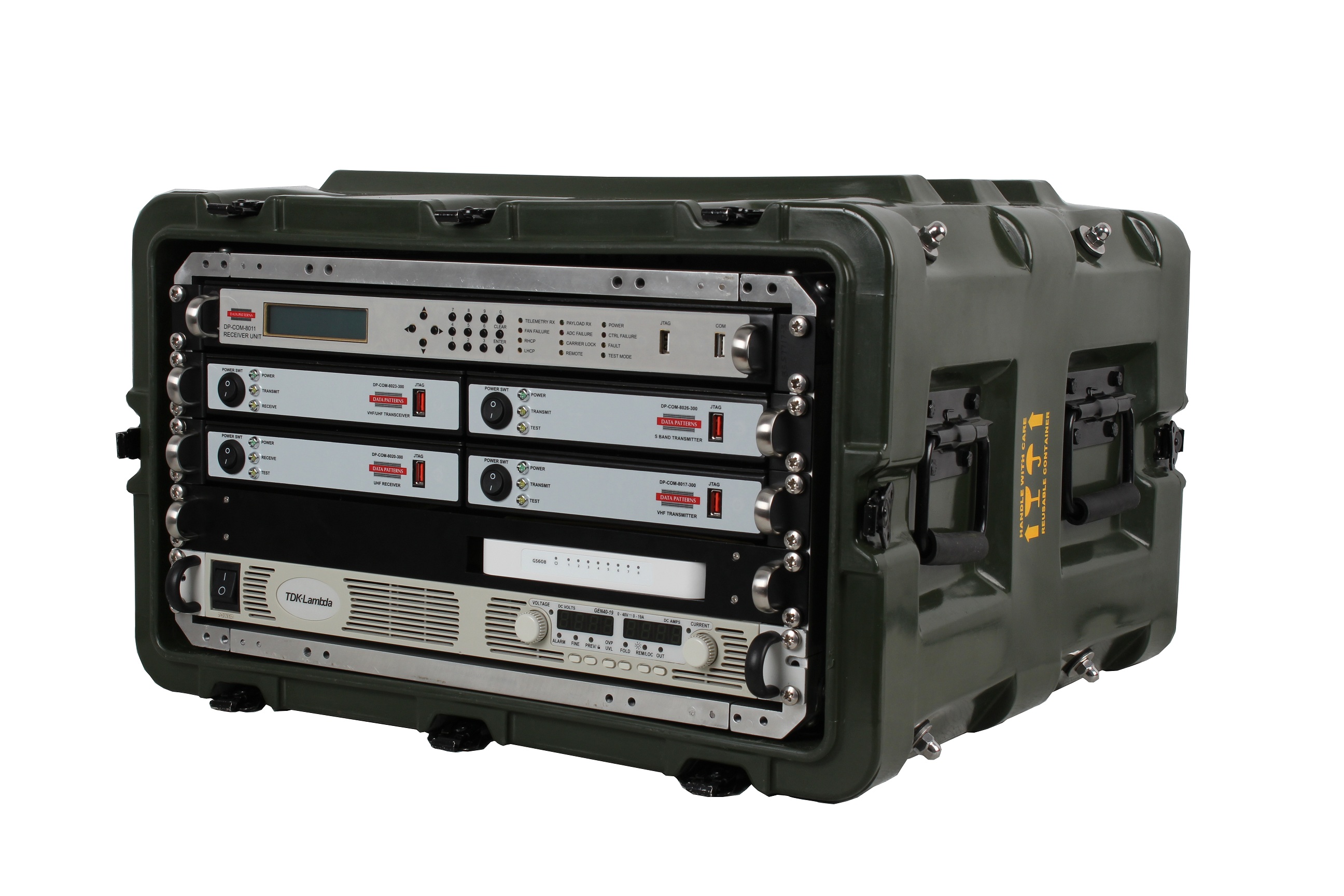

Ground Station System's

         Note: Please click the corresponding blocks for more details
