Radar and Radar Subsystems
A variety of complete Radars and Radar Sub-systems have been implemented by Data Patterns. These include Airborne Central Unit for an Early Warning Radar which has been fully qualified to aircraft LRU standards, Tracking Radars, Phased Array Antenna Components, Wind profile radar, Coastal Surveillance etc.
The Radars include technologies pertaining to:
- Radar Signal Processing
- Transmitters
- LFM (Linear Frequency Modulation) and Phase Shift coding
- Complementary codes, Barker codes and Spano codes
- Transmit Waveform Generation
- Low Noise Receivers
- Digital Down Conversion
- I and Q separation
- DDS, Digital filtering and decimation
- Pulse Compression – Matched filtering
- Doppler Extraction
- Clutter removal
- Target Tracking Algorithms
- Range Tracking and Angle Tracking
- α-ß Algorithms
- Kalman Filtering
- Phase Sensitive Detection – Angle Tracking
- Computation of Radar Products for Wind Profilers
- Power Spectra, Moments – M0, M1 & M2
- Noise floor estimation
- Wind Speed & Direction, UVW
- RTI (Range Time Intensity) and VTI (Velocity Time Intensity) plots
| Product Name | Description | View |
|---|---|---|
| DP-RDR-8005 | X-Band Dual Polarimetric Doppler Weather Radar |  |
| DP-RDR-8026 | Stratosphere Troposphere Wind Profiler RADAR | |
| DP-RDR-8035 | X-Band Fully Solid State Surveillance Radar |  |
| DP-RDR-8038 | Enhanced ECM and Radar Target Signal Generator | |
| DP-RDR-8044 | Precision Approach Radar | |
| DP-RDR-8056 | C-Band Dual Polarimetric Doppler Weather Radar | |
| DP-RDR-8059 | Navigation Radar | |
| DP-RDR-8077 | X-Band Monopulse Radar | |
| DP-RDR-8086 | Tracking Radar | |
| DP-RDR-8107 | L-Band Wind Profile Radar | |
| DP-RDR-8128 | VHF Radar | |
| DP-RDR-8134 | AESA Radar | |
| DP-RDR-8140 | Transportable Precision Approach Radar | |
| DP-RDR-8206 | Short Range Air Surveillance Radar | |
| DP-RDR-8248 | S-Band Dual Polarimetric Doppler Weather Radar | |
| DP-RDR-8269 | Static Precision Approach Radar | |
| R1 | Full S-Band Phased Array Antenna for Low Level Tracking Radar (LLTR) for Army | |
| R11 | Transmit / Receive Interface System for Multi Object Tracking Radar | |
| R12 | C & S-Band Tracking Radar for ISRO | |

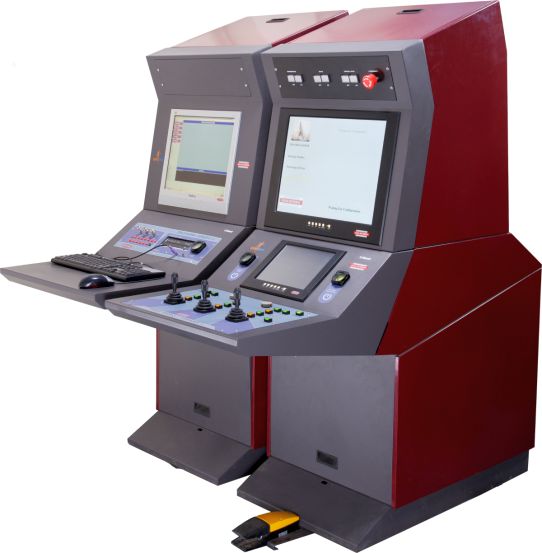

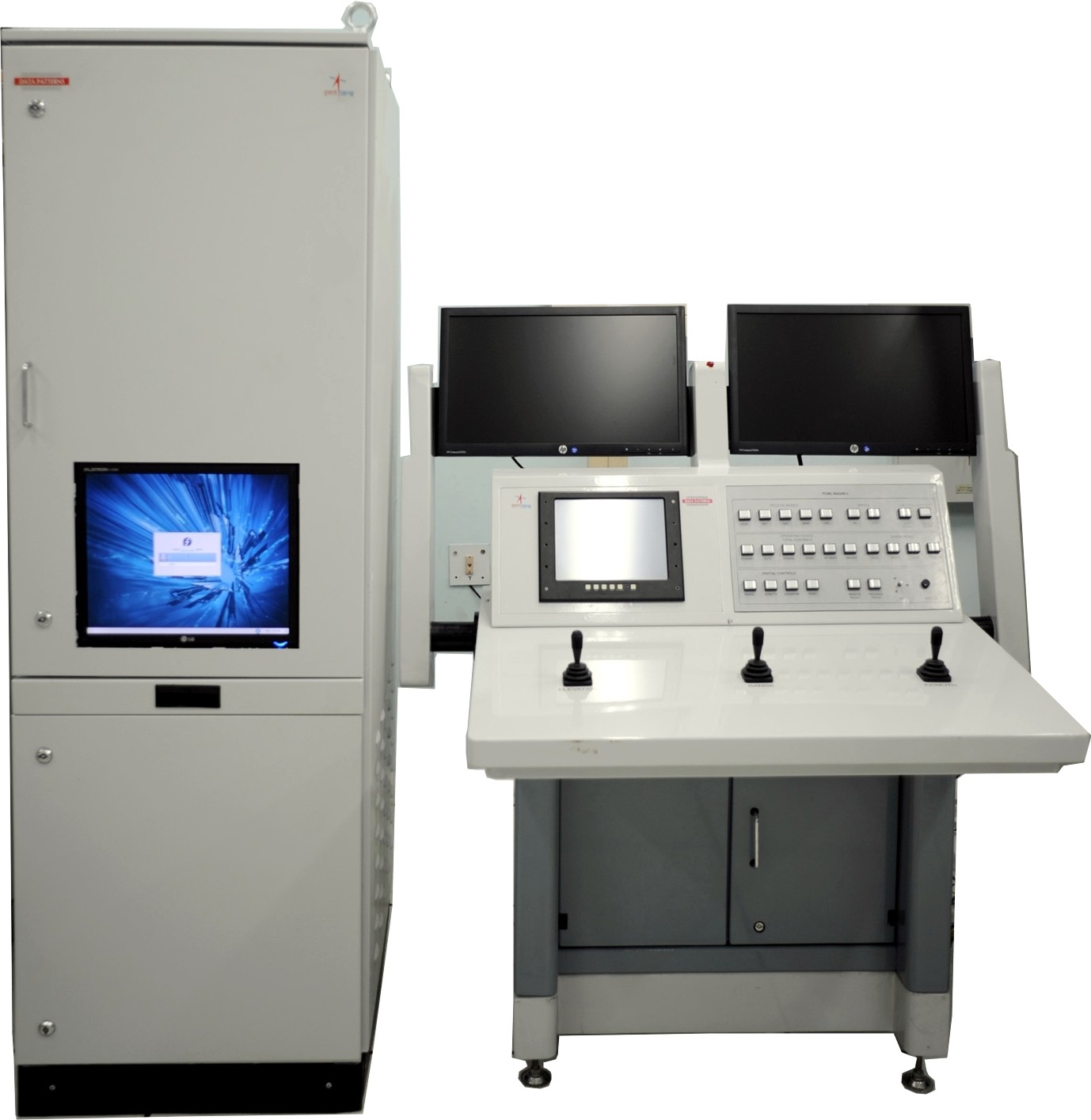

| R13 | Radar Data Processing and Control Console for Precision Coherent Monopulse C-Band Radar | |

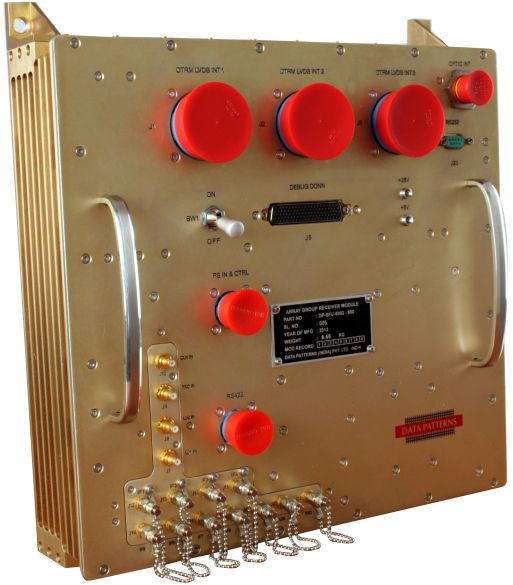

| R2 | Complete Array Group Receiver in S-Band for Medium Power Radar (MPR) for Airforce | |
| R3 | Digital Signal Processing Waveform and Radar Data Processing System for Rohini, Revathi and Ashlesha (AF) | |
| R4 | Computing System for Akash Surface Missile System (Army and AF) | |
| R5 | Receiver / Exciter Central Unit for AEW & LSTAR Radars | |
| R6 | X-Band Imaging Radar | |

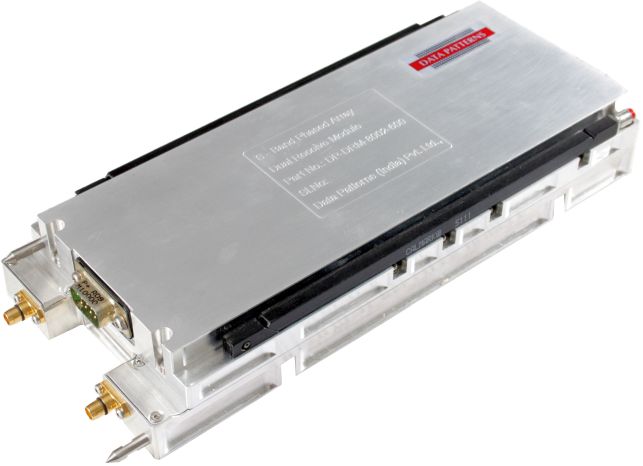

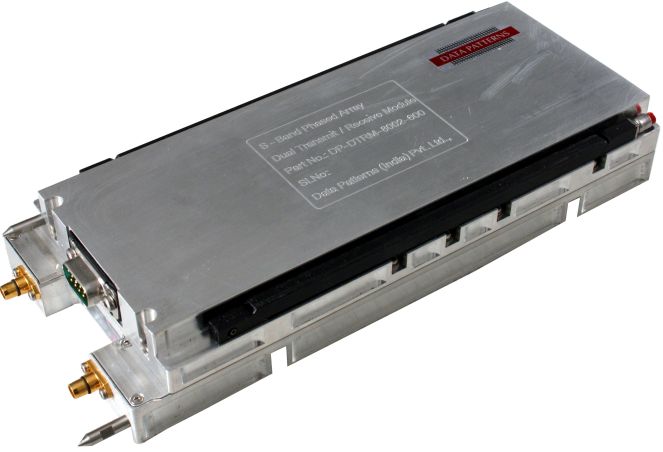

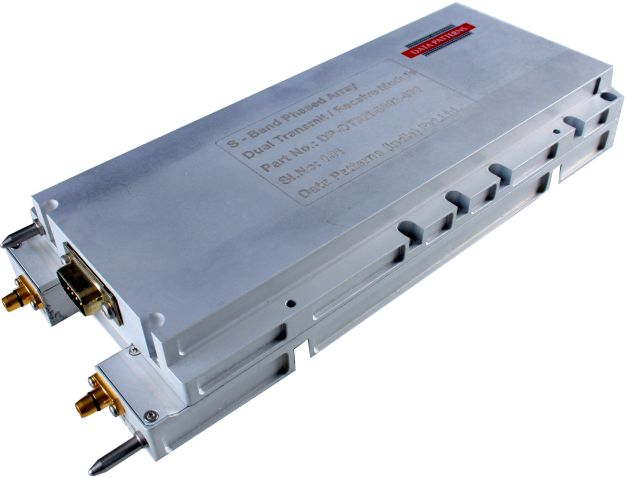

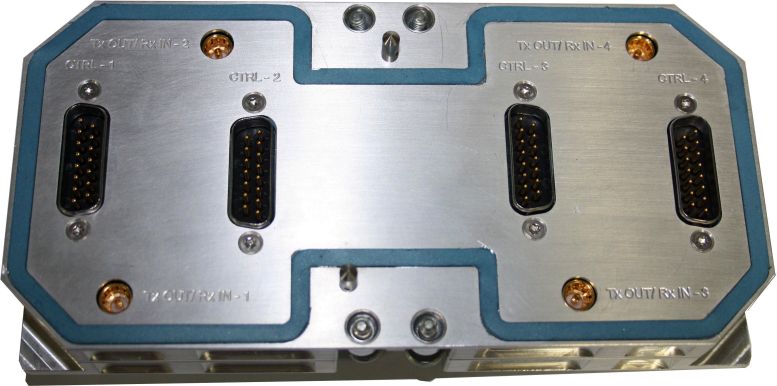

| R7 | TR Modules in UHF, S, C and X-Band | |

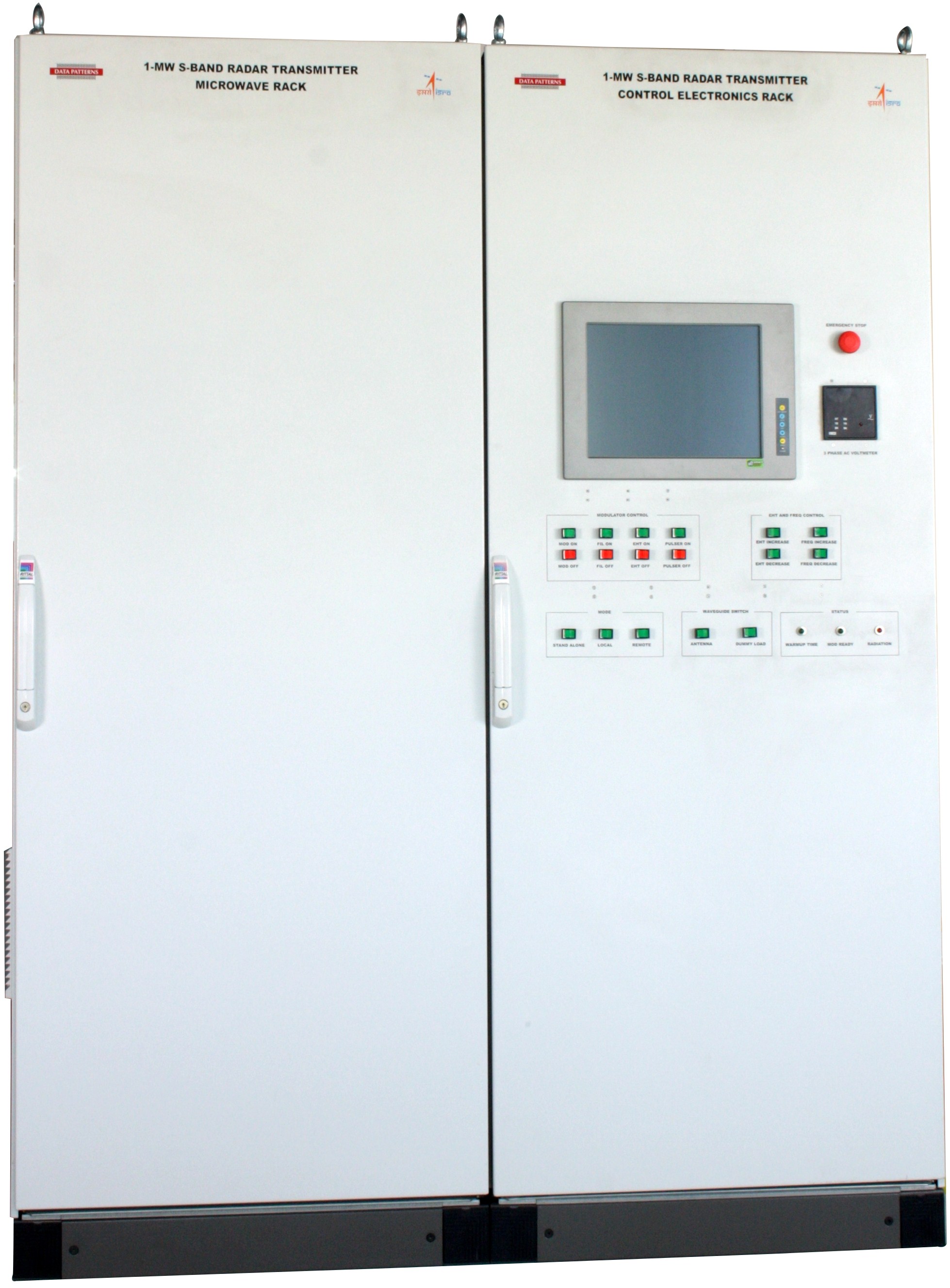

| R8 | 1MW S-Band Radar Transmitter | |

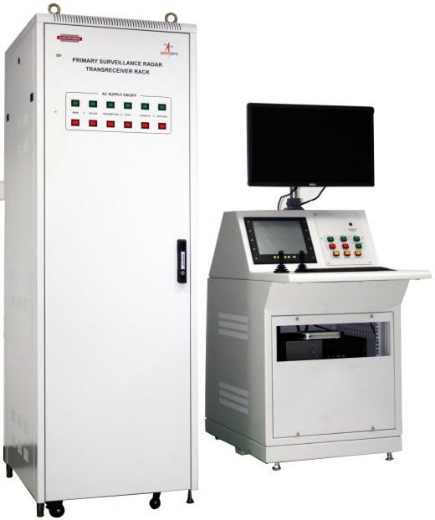

 Primary Surveillance Radar for Coastal surveillance |

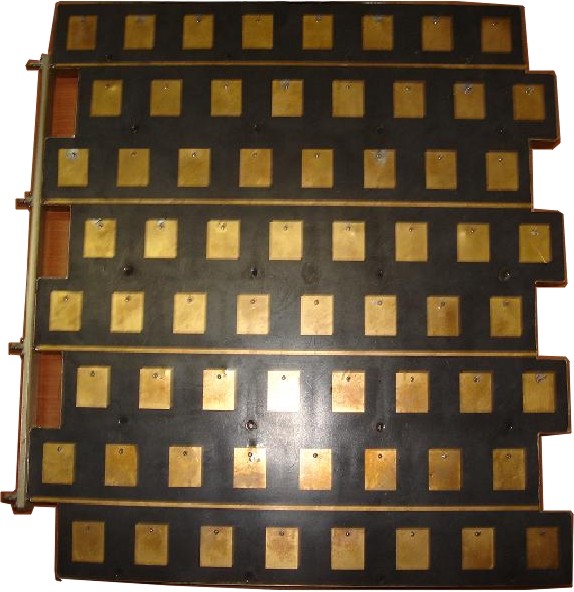

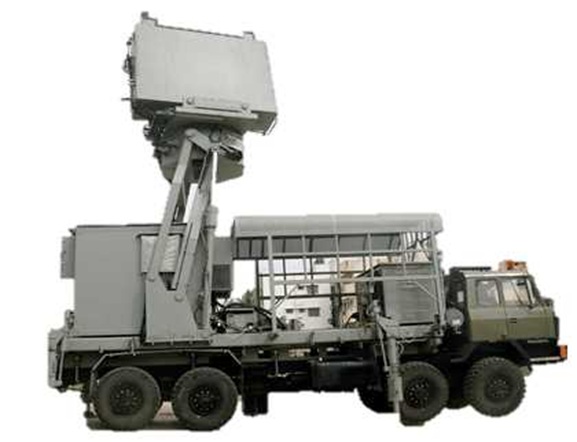

 Full S-Band Phased Array Antenna for Low Level Tracking Radar "Ashwini" |

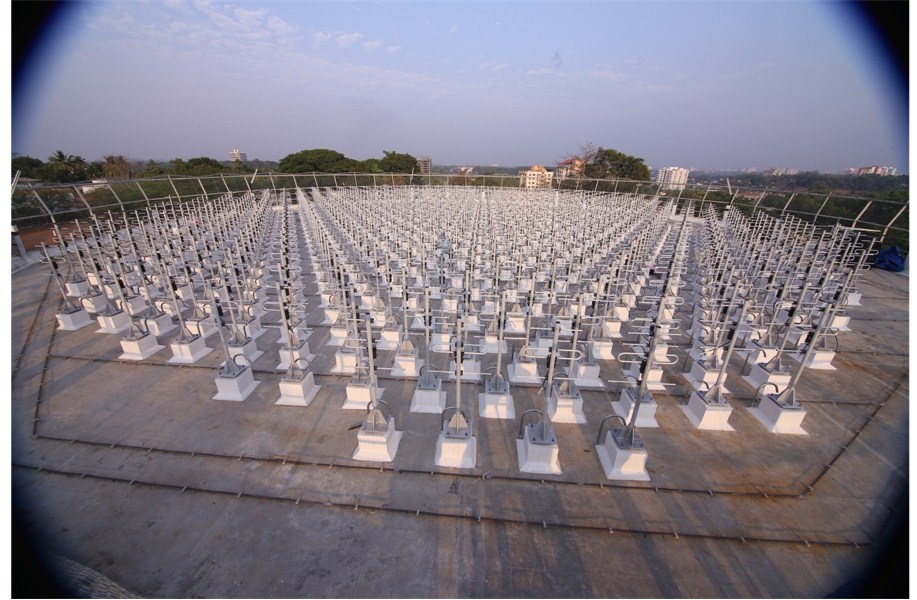

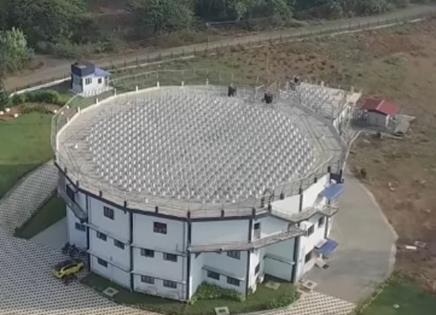

 CUSAT VHF Wind Profile Radar |

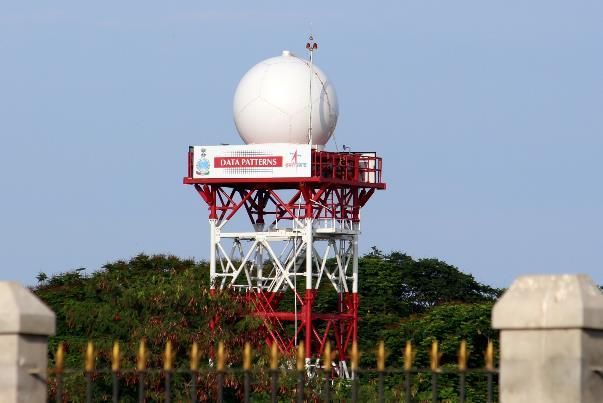

 X-Band Dual Polarimetric Doppler Weather Radar |

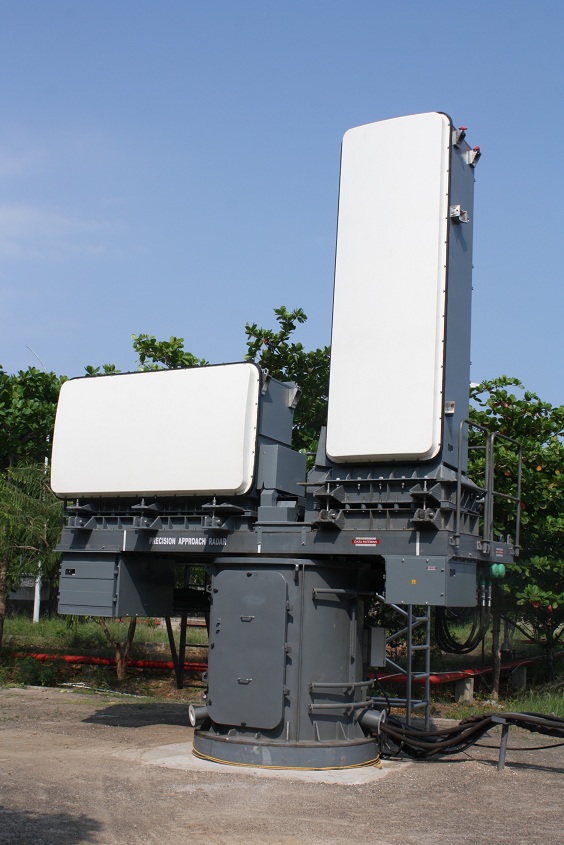

 Precision Approach Radar |

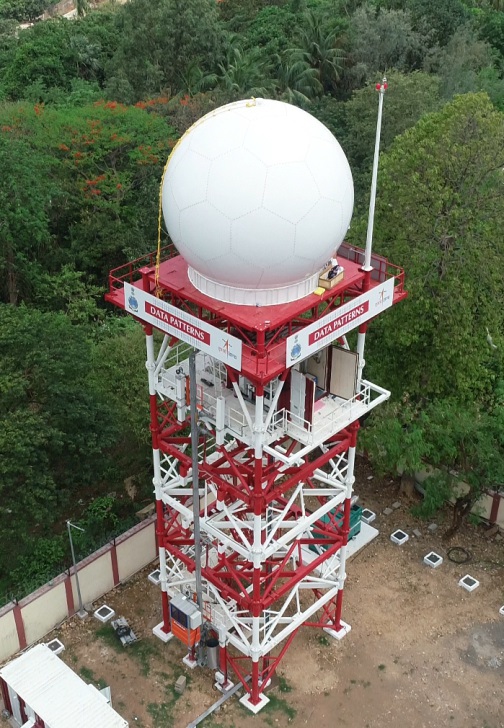

 C-Band Dual Polarimetric Doppler Weather Radar |

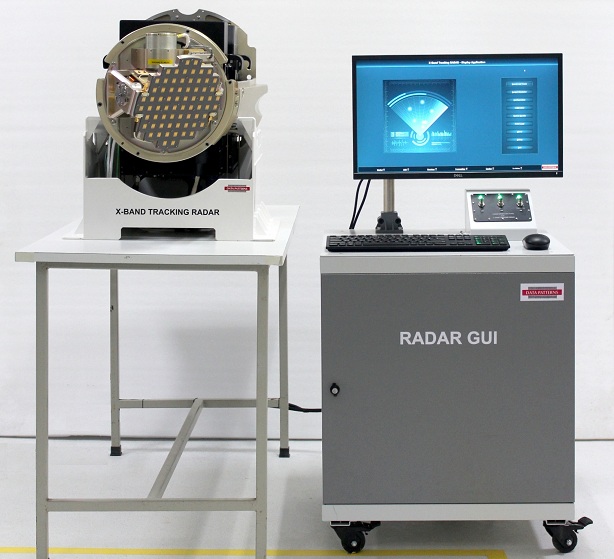

 Tracking Radar |

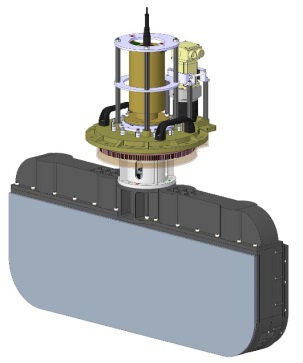

 AESA Radar |

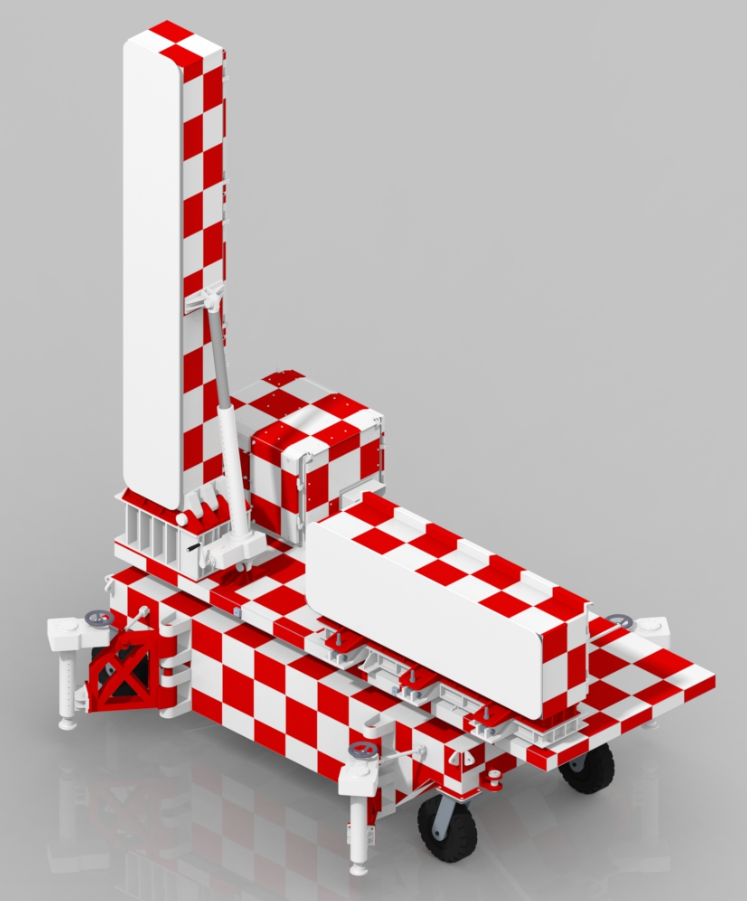

 Transportable Precision Approach Radar |
