ATE & Test Systems

Data Patterns' core business for over 20 years has been the development of Automated Test Equipment for critical aerospace requirements. Data Patterns developed a Multi Programmer with associated test automation software in 1994. Christened the DP-800 this product was adopted for the implementation of test rigs for Navigation Platform Test Benches, Engine Test Bed Automation, Cable Harness Test Systems, etc. This product was effectively utilized in the development of test benches required by Indian Space Research Organisation (ISRO) for the Polar Satellite Launch Vechicle (PSLV) and Geo Stationary Launch Vehicle (GSLV). Based on this foundation, the next generation test benches were developed in the cPCI architecture. Presently, Data Patterns develops cPCI based test systems for Laboratory applications as well as VME based test systems for challenging environmental conditions. Examples of test solutions built by Data Patterns are indicated below.

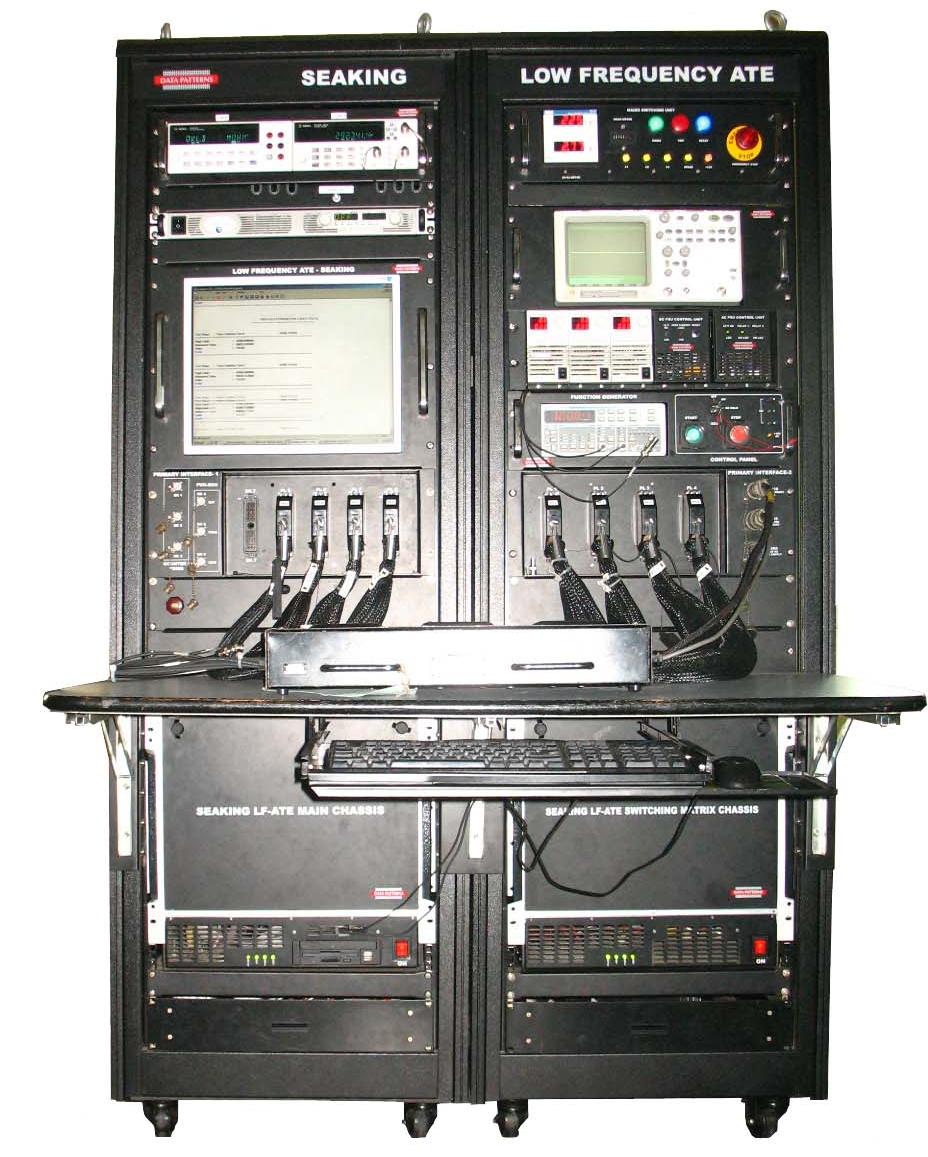

Avionics Suite Tester
Avionics Suite Tester

Based on order from the Navy, Data Patterns developed the complete Automated Test Equipment required for validating all the Line Replaceable Units (LRUs) utilized in the Seaking Helicopter. The upgrade was carried out...

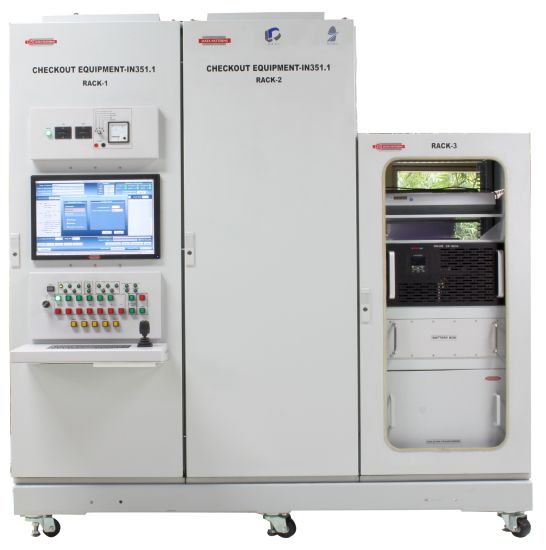

BrahMos Checkout
BrahMos Checkout

Data Patterns designed and built the BrahMos Missile Checkout Equipment based on the requirements and support of DRDO and BrahMos.  This unit validates the complete performance of the Missile through interfacing with it's umbilical and...

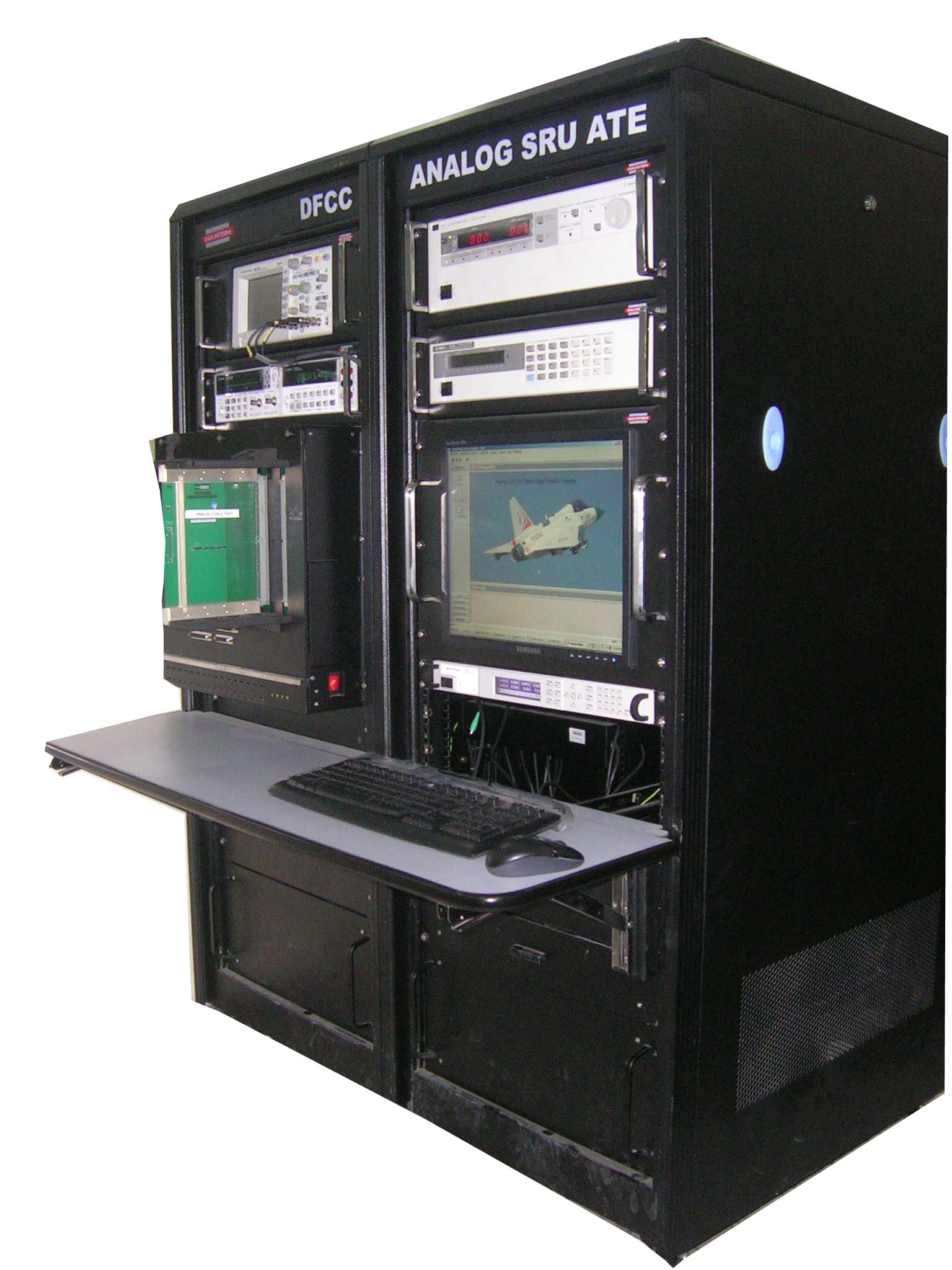

Digital Flight Control Computer
Digital Flight Control Computer

The Digital Flight Control Computer is a Quadruple Redundant Flight Control Computer designed by DRDO and ADE and manufactured by Bharat Electronics Limited. Data Patterns has designed and manufactured the Automated Test Equipment required for...

Go No Go testers
Go No Go testers

Go No Go Testers are developed in portable formats. Typically these are utilized at 'I' Level and 'O' Level test requirements and clear the aircraft LRU for flight.

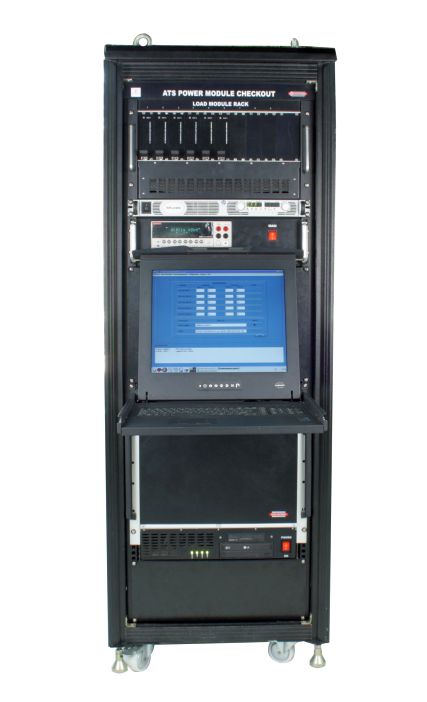

Power Module Tester
Power Module Tester

The Power Module Checkout ATE is developed for testing DC-DC Power modules typically utilized in India's space program. The DC-DC converters are exhaustively tested for all design parameters including...

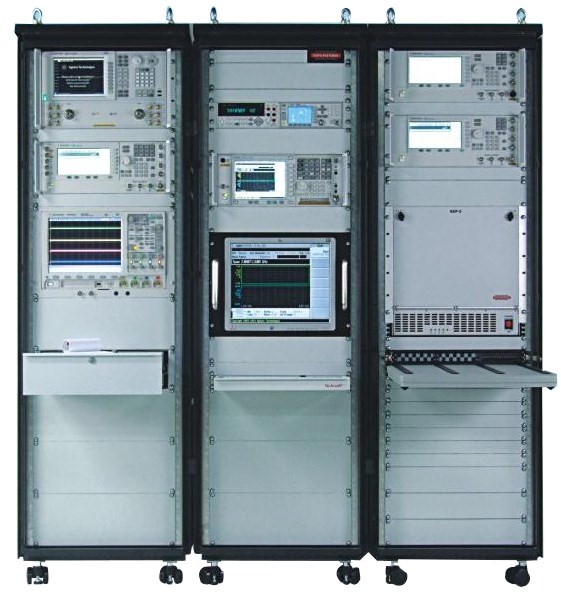

Generic RF ATE
Generic RF ATE

The Generic RF ATE is developed to test the Radar and Radar Subsystems. The ATE is primarily built using an instrumentation control, precision RF routing systems and rack mounted test instruments. Generic RF ATE system...

Cable Harness Test System
Cable Harness Test System

Data Patterns has built high reliability Cable Harness Test Systems for large installations. These are primarily used in launch vehicle aircraft and missile level cable harness test validation....

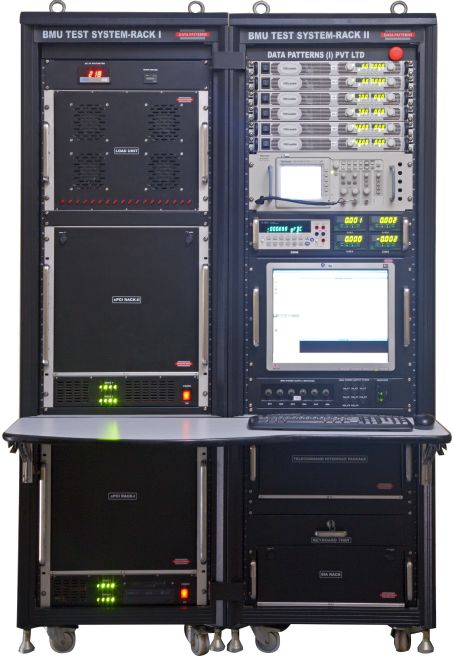

Bus Management Unit
Bus Management Unit

  • Solution to test  redundant Architecture of BMU
  • Comprehensive test system performing tests of > 3000 I/O's
  • Special test circuits using hybrid / ceramic components to operate in Thermovac chamber
  • Tests...

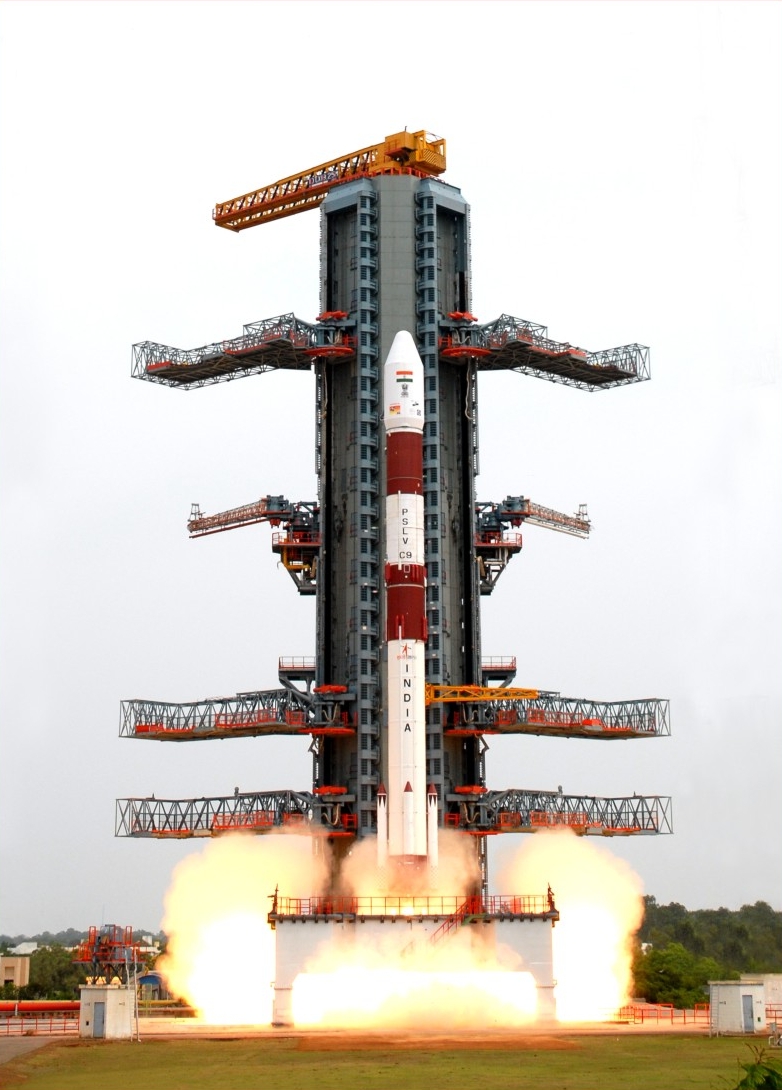

Count Down Test System
Count Down Test System

The Second Launch Pad Count Down system is implemented using VXI hardware designed by Data Patterns specific to the application requirements,  featuring a redundant system handling upto 14000 I/O...

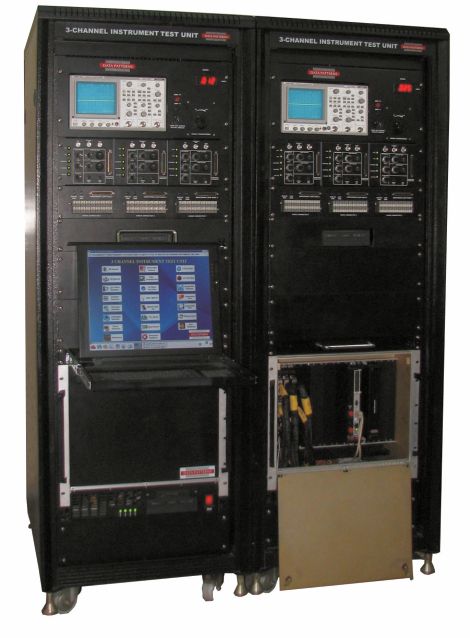

INTU ATE
INTU ATE

Instrument Test Unit For Advanced Inertial Sensors (INTU) is used for testing and evaluation of Ring Laser Gyro (used in GSLV/PSLV launch vehicles), that detects the angular displacement during rotation....

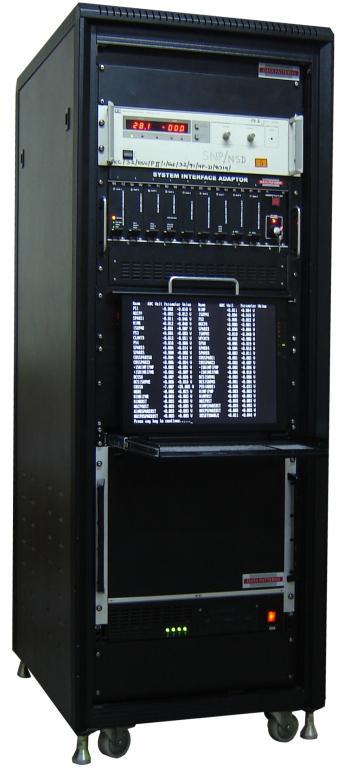

Redundant Strap Down INS ATE
Redundant Strap Down INS ATE

Redundant Strap down Inertial Navigation System (RESINS) checkout test station comprises of cPCI chassis with various functional I/O modules like ADC, DAC, DIO, VFC, Relay matrix, MIL 1553, GPIB, Serial...

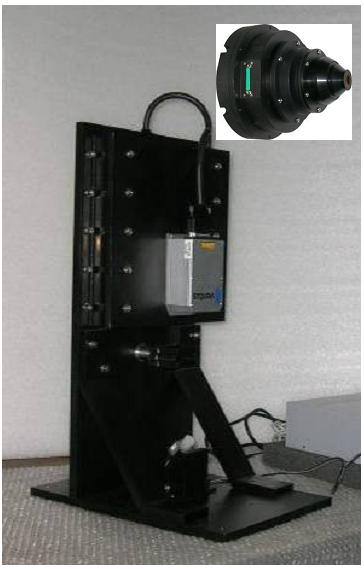

Scan Mirror Test
Scan Mirror Test

The Scan Mirror Test system is used for validating the linearity of the Scan Mirror Mechanism that is deployed on-board satellites. The system was a custom turnkey project in the electro optics...

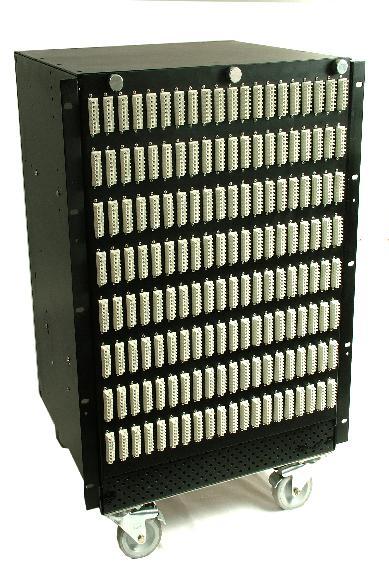

Strain Data Acquisition System
Strain Data Acquisition System

The System is intended for acquisition of static strain data on large structures such as fuel tanks in launch vehicles and launch motor casings using a 24 bit Sigma Delta ADC and precision analog signals.

This product provides...

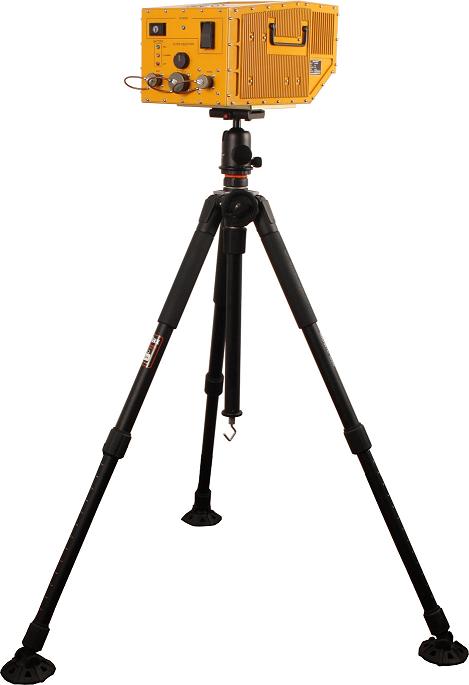

Laser Guided Bomb Tester
Laser Guided Bomb Tester

Designed for application on the Tarmac, this portable battery operated laser guided bomb test system enables a pre-flight test of laser guided bomb. Specially designed to provide the required guidance and portability...
