Data Patterns offers the broadest and most comprehensive range of standard products, providing solutions from COTS modules to multi rack system integration. We offer products under the business domains of Automatic Test Equipment (ATE) and Rugged Military Electronics (RME). We lead the industry in the development of advanced functionalities, World class thermal and environmental protection, and Built in Test and life cycle maintenance strategies required to ensure reliable and predictable system performance in harsh environments.

Data Patterns not only designs and develops a wide range of building blocks, but also integrates total solutions for avionics and other rugged military hardware. The products are accompanied by test systems that validate the Line Replaceable Units, in order to ensure long term maintainability of the products.

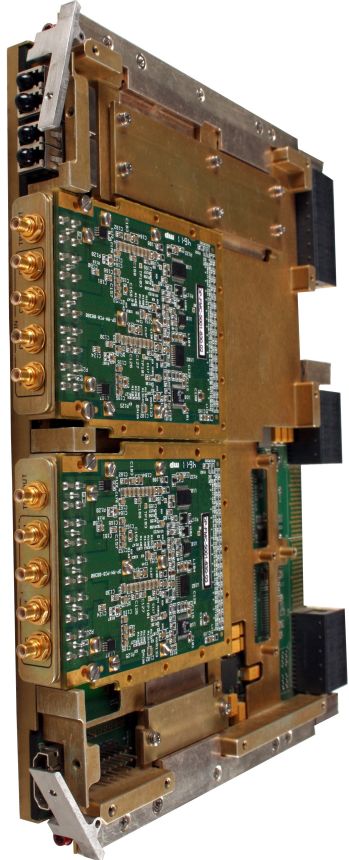

COTS Boards

COTS Boards

Built in strict adherence to open architecture standards, Data Patterns designs COTS module products which are used in today's rugged applications and automatic test equipment platforms. Open standard form factors include cPCI, FMC & XMC, IP,...

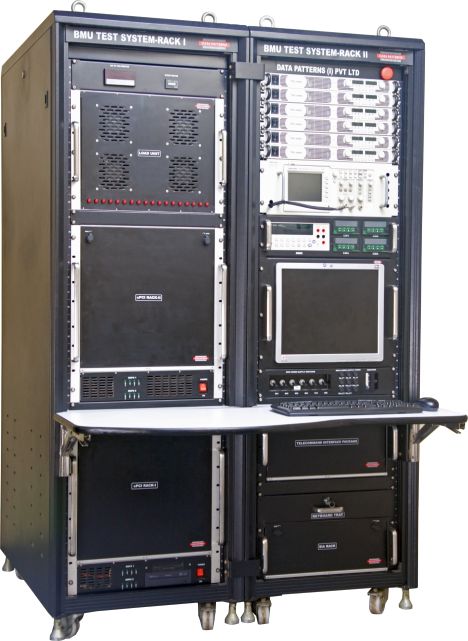

ATE & Test Systems

ATE & Test Systems

Data Patterns' core business for over 20 years has been the development of Automated Test Equipment for critical aerospace requirements. Data Patterns developed a Multi Programmer with associated test automation software in 1994. Christened the...

RF & Microwave

RF & Microwave

Data Patterns has a strong RF and Microwave engineering capability, featuring a team of enthusiastic engineering talent, substantial investments in RF test and measuring instruments, and attitude to utilise the latest technologies.

An...

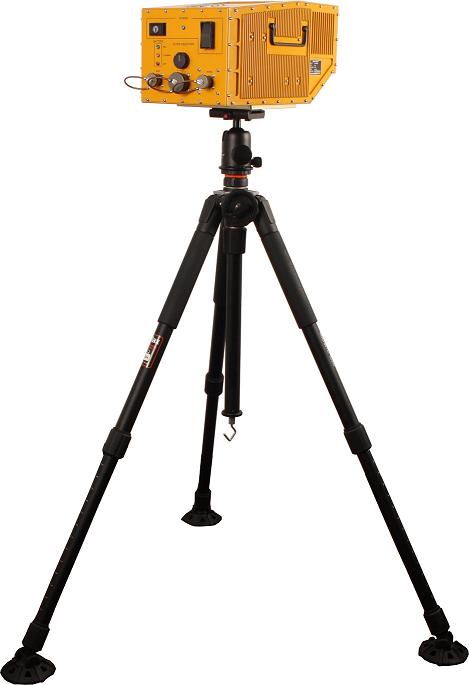

Electronic Warfare

Electronic Warfare

Data Patterns has developed a line up of State of the Art Integrated solutions for spectrum monitoring, wideband searching, ECM & ESM, direction finding for Airborne and Ground Mobile Applications standard Products include VHF/UHF Search...

Cockpit & Rugged Displays

Cockpit & Rugged Displays

Data Patterns offers a wide range of multi-function rugged LCD displays for rotary and fixed-wing aircraft. The current range extends from 3" to 20" units. All avionics displays offer leading edge functionality including on board smart processing...

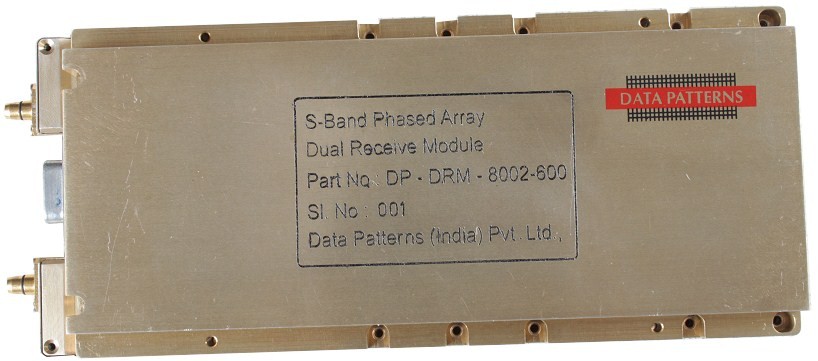

Radar and Radar Subsystems

Radar and Radar Subsystems

A variety of complete Radars and Radar Sub-systems have been implemented by Data Patterns. These include Airborne Central Unit for an Early Warning Radar which has been fully qualified to aircraft LRU standards, Tracking Radars, Phased Array...

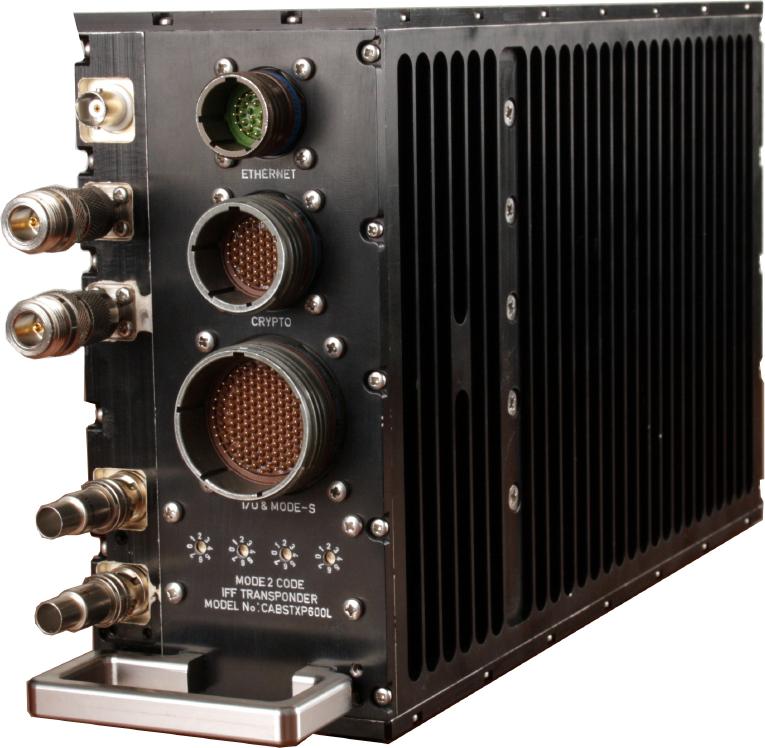

Identify Friend & Foe

Identify Friend & Foe

A range of STANAG 4193 compatible products for airborne and ground application, including transponders, Interrogators, and combined Interrogator & Transponders.

Fire Control Systems

Fire Control Systems

Data Patterns has designed Fire Control Systems for Missiles, Torpedoes and Decoys for Ground, Air and Naval Applications.

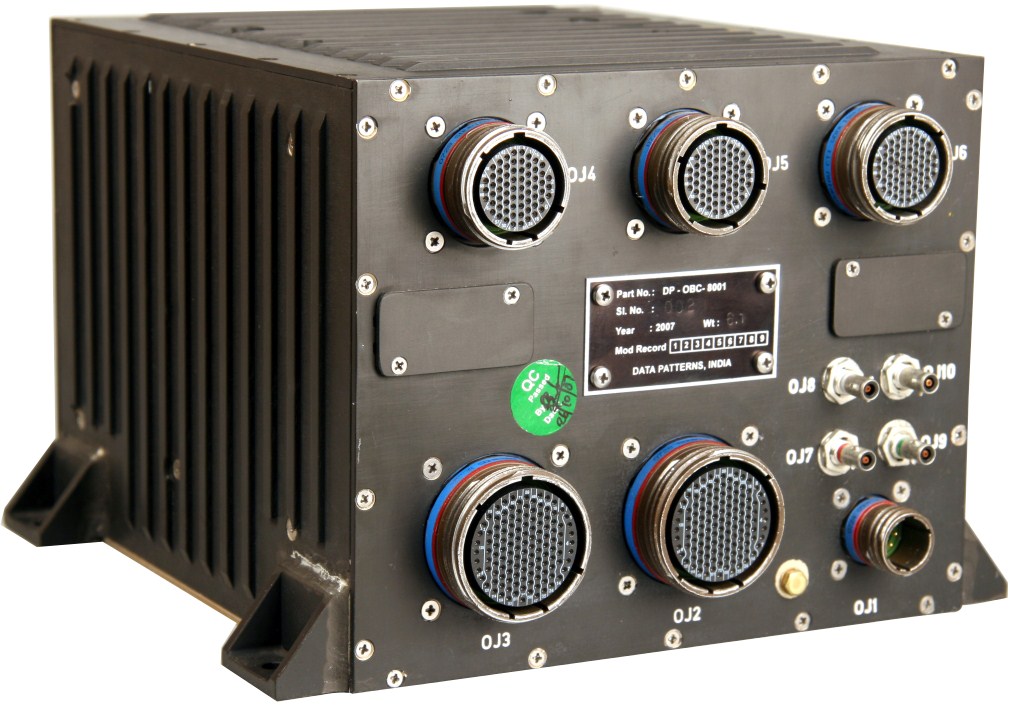

Avionic Systems

Avionic Systems

Data Patterns has designed prototyped, qualified and manufactured a wide variety of products intended for airborne applications in manned and unmanned aircraft. Ranging from smaller unmanned vehicles and missiles to manned fighter aircraft, Data...

Seeker

Seeker

Data Patterns has developed a High performance imaging and monopulse Radar for seeker applications. This is optimized for Land & Sea targets and has X-Band SAR (Synthetic Aperture Radar) based...

Laser and Electro Optic System

Laser and Electro Optic System

A range of electro-optical products have been built for surveillance, imaging and testing requirements.

Space Systems

Space Systems

A number of products for space applications are manufactured to customer designs, at our ISRO approved manufacturing facility. Few systems are developed to customer's specifications.

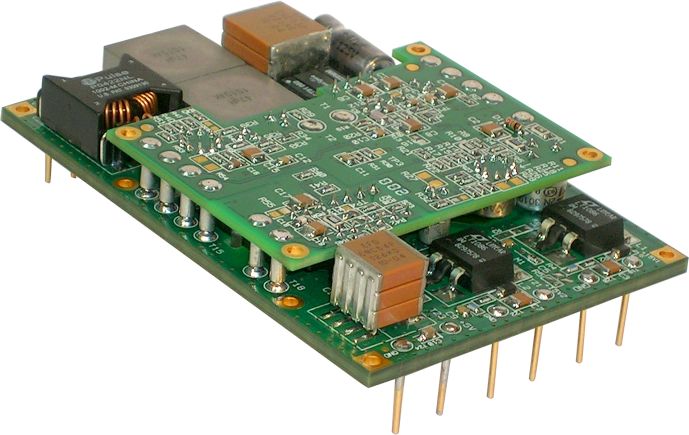

Power Supply

Power Supply

Power supplies of various ratings for Air, Naval ground based and space applications are developed. Products are implemented in VPX, VME, cPCI and custom form factor designs.

Most products qualified to requirements of MIL-STD-461C and...

Naval Systems

Naval Systems

A number of Naval products have been designed, qualified and delivered to Naval Shipyards including Garden Reach Shipbuilders & Engineers Ltd (GRSE) and Mazagon Dock Limited (MDL)

Some systems have been supplied to M/s. Bharat...

Communication Products

Communication Products

Data Patterns has standard communication products for most military protocols such as MIL-STD-1553B, ARINC-429, ARINC-708, RS422. A spread spectrum modem is available for both terrestrial and satellite communication requirements.

These...

Gimbal and Actuator Controller Products

Gimbal and Actuator Controller Products

Data Patterns has developed the required expertise to design and maufacture BLDC Motor drivers used in close loop position control applications primarily for actuator control and Thrust vector nozzles and control surface (FINS) for missile and...

Fibre Optics

Fibre Optics

Data Patterns utilizes Fibre Optic Communication for high speed data transfer requirements. Protocols such as Serial FPDP, Aurora, PCI Express, Gigabit Ethernet are implemented on Fibre Optic Medium.

Solutions...

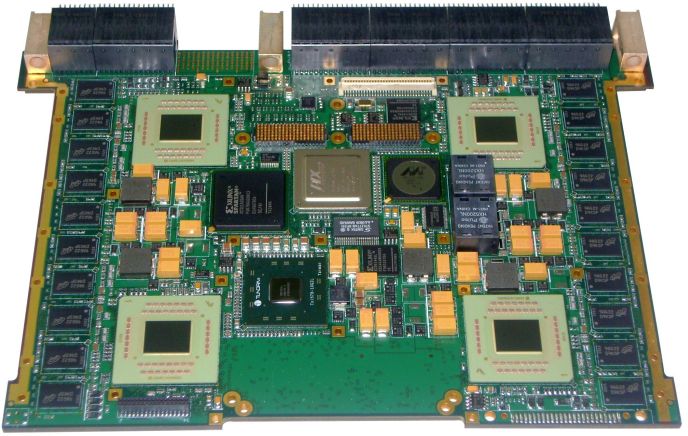

High Speed Processors

High Speed Processors

Data Patterns has a state-of-the-art line up of high end processing modules utilizing fast multi core processor based architecture as well as FPGA based processing engines. These are applied in Radar Signal Processing, Image Processing and...

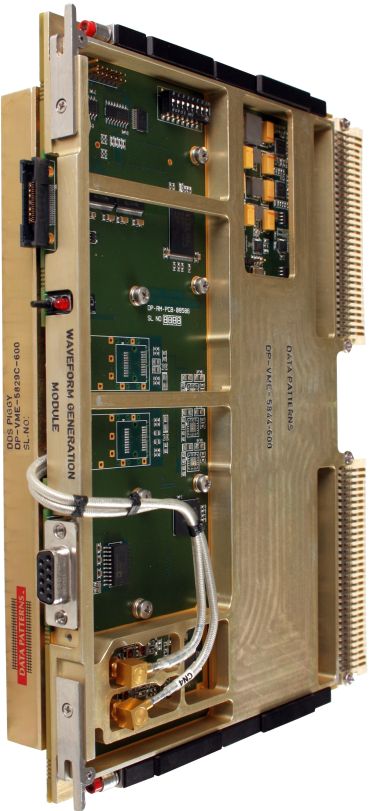

Digital IF Processors & Waveform generators

Digital IF Processors & Waveform generators

These products are implemented through modern high speed digitizers and digital to analog converters and are backed by FPGA based processing that implements baseband tuning and high speed I&Q vector generation algorithms. These find...

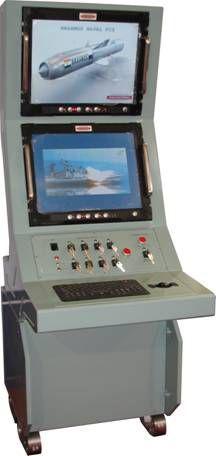

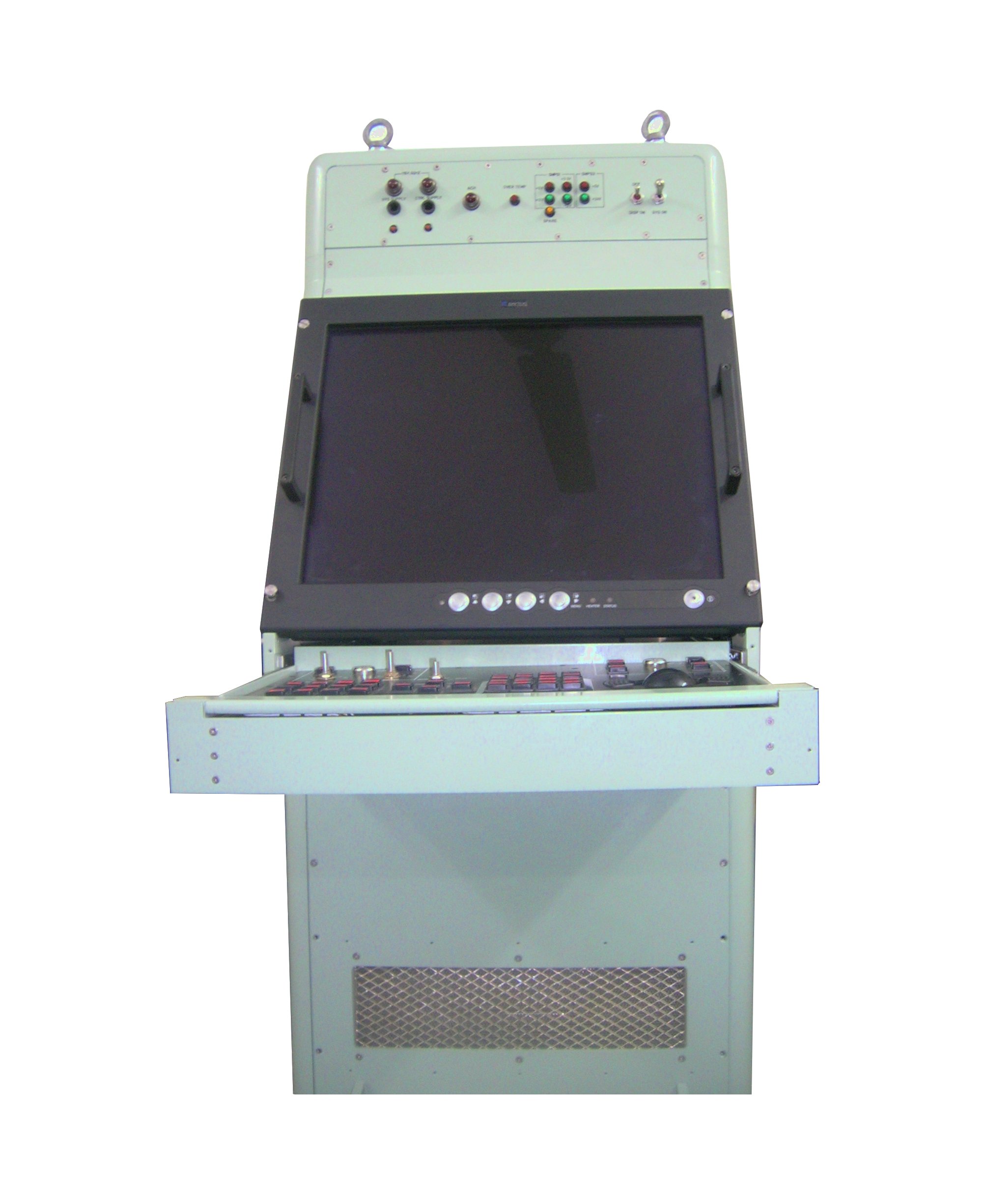

Console

Console

Data Patterns has built system level consoles for number of programs.

  • Naval Console for Missile Launch Applications
  • Naval Consoles for Torpedo Launch Applications
  • Console for land based Missile  Launch...

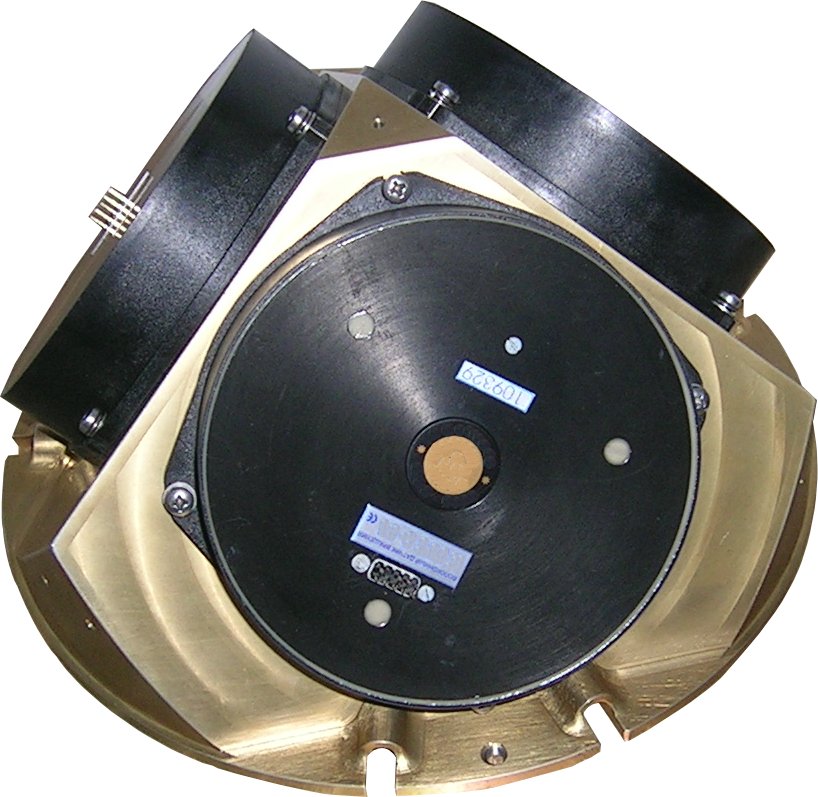

Navigation System

Navigation System

Data Patterns has designed and manufactured Fibre Optic Gyro based Inertial measurement units for under water applications with all algorithms including Kalmann filters and co-ordinate transformations implemented.

Software & Application Products

Software & Application Products

Data Patterns has standard software solutions for automation of test equipment application development (DP-CUTE) and for software development and debugging in multi processor environment (DP-CHRONO).

Specialized application software...
