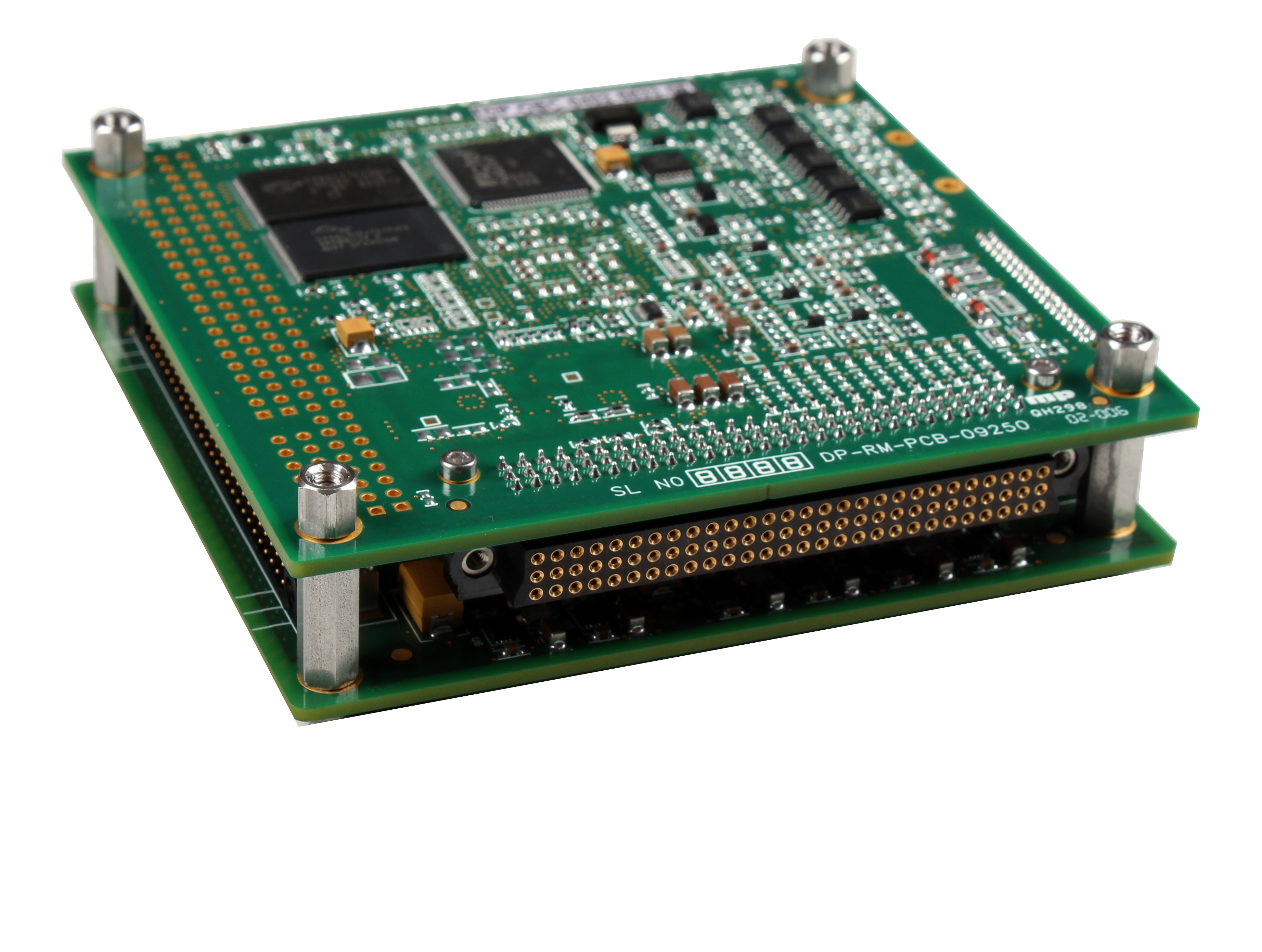

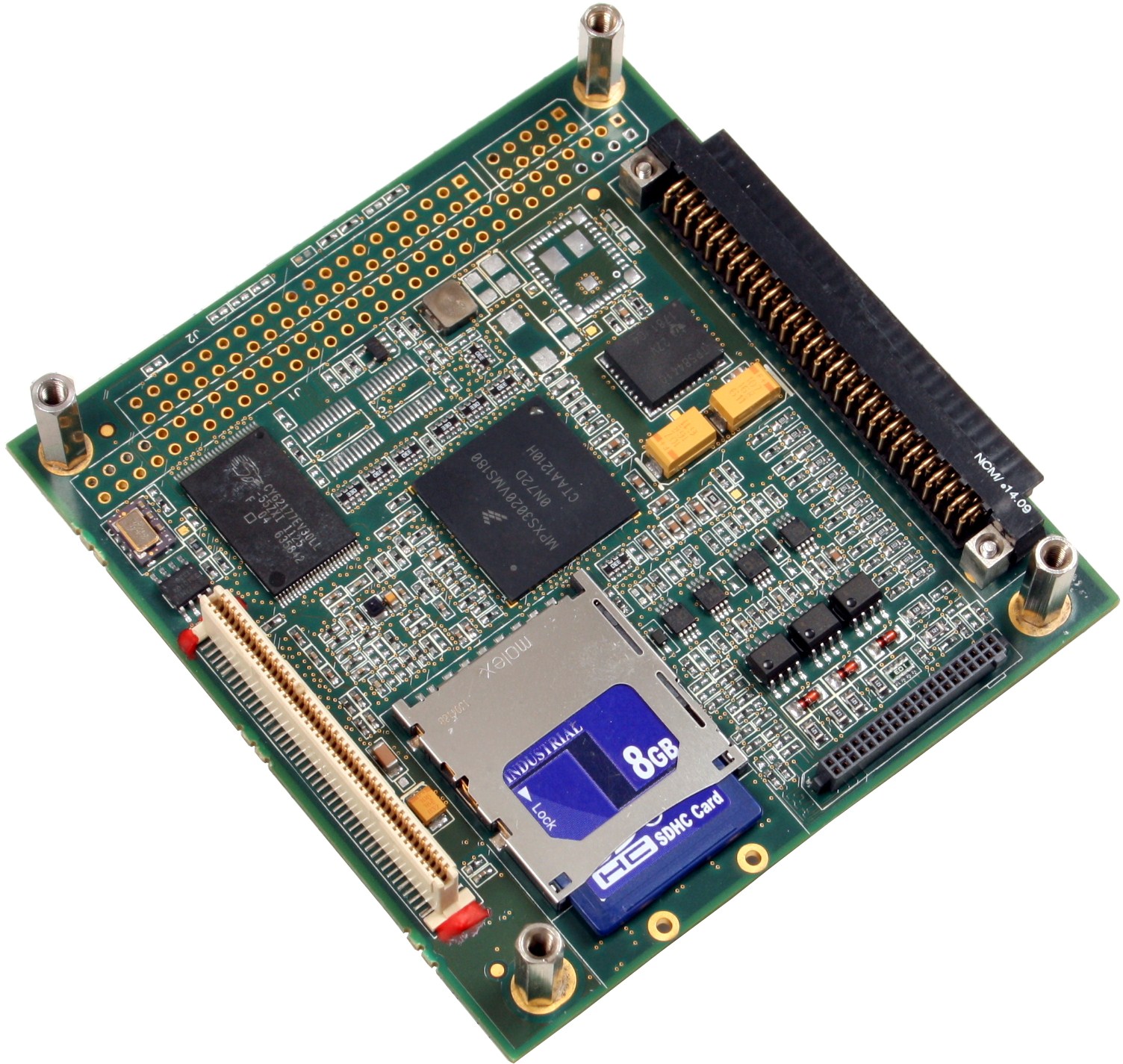

The Data Patterns OBC is a flight qualified, robust computing platform ideal for Cube, Nano and Microsat missions. It contains a high performance dual core 32-bit power architecture PXS3020 micro controller with core operating frequency of up-to 180 MHz. The microcontroller can perform general functions of satellite like command handling, thermal & power management, payload data operations and attitude determination with control operations.
The module comes with a pluggable daughter board for additional features & flexibility. The daughter boards has I/O buffers, H bridge circuitry for torquers and connectors for ease of system integration.
● Dual core micro controller operating in lockstep mode or decoupled parallel mode.
● On chip memory with Error Correction Code (ECC).
● EBI (External Bus Interface) for memory and I/O expansion.
● Industry standard serial communication interfaces.
● Flex PWM (Pulse Width Modulator) units with four 16bit channels per module.
● In-built ADC for temperature monitoring and Bus voltage monitoring.
● Extended memory - 8GB SD card with ECC, 2MB external user flash with ECC and 8MB SRAM with ECC.
● 5V/3.3V power options with low power consumption.
● 2 levels of software WDT for processor.
● PC104 form factor compliant.
| Product Name | Description | View |
|---|---|---|
| DP-OBC-0402 | On Board Computer |
|
1. OBC Main Card
2. Daughter Card
3. Software device drivers
4. Integrated Development Environment
5. JTAG programmer
1. Lab Model
2. Qualification Model
3. Flight Model
