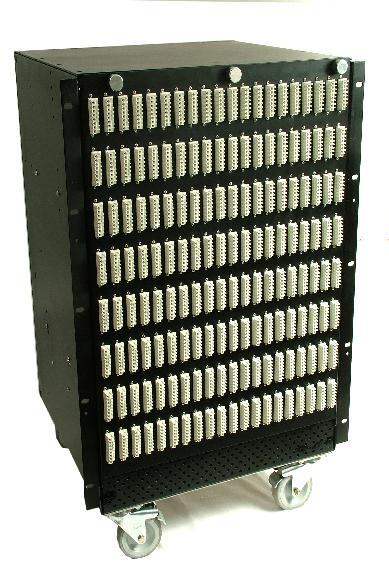

Strain Data Acquisition System

The System is intended for acquisition of static strain data on large structures such as fuel tanks in launch vehicles and launch motor casings using a 24 bit Sigma Delta ADC and precision analog signals.

This product provides Micro strain level accuracy with extreme low drift and high temperature stability for a precision strain gauge measurement system engineered for large channel count applications.

Data Patterns has supplied thousands of strain gauge measurement channels for India's launch vehicle programs by using the cPCI architecture and providing compatibility with other data acquisition products.

This system can easily can accommodate displacement measurement transducers, temperature DAC and so on. Facilities for multi rack synchronization, time stamping, operation control, grapping and reporting tools simplify the operation of the system. A comprehensive built-in test enables validation of all wired sensors. This feature is very critical when large number of sensors are simultaneously being acquired.
