Microwave

Data Patterns are microwave specialists and partners in the country's modern radar and satellite development projects. We have products designed and developed for almost the entire RF spectrum; technology that has been applied and proven for radar and telecom. We offer RF/ Microwave product development across a range of applications, from HF Band to K Band and beyond; the ability to design and deliver products from 20 MHz to 18 & 36 GHz, and, build and test High Power Pulsed Amplifiers of up to 1KW.

We can combine Digital and RF products for hybrid synergistic applications. Our deliveries range from module level development to complete system development and integration. The existing Microwave portfolio covers products for an exhaustive range of RF distribution and signal processing systems. Solutions using suitable system architecture, with a better understanding of end applications from RADAR, Electronic Warfare, and Satellite, and their related domains can be offered.

Data Patterns has the expertise required to deploy both primary and secondary radar applications. We also deliver exactingly engineered Active Array Antenna systems. In addition, Solid State Power Amplifier (SSPA) devices have been designed and delivered. We are design and capacity ready for post-3G applications too.

Our products have been built to conform to Environmental Test methods like JSS55555, and, for EMI/ EMC compliance with MIL-STD-461 C/D/E/F or DO-160 G. We offer Power Supplies that are compliant with MIL-STD-704D as well. Products have been made that can withstand extreme environment conditions as per MIL-STD-810F for use in Defence and Aerospace. We also use reliability prediction for electronic products as outlined in HDBK-217F

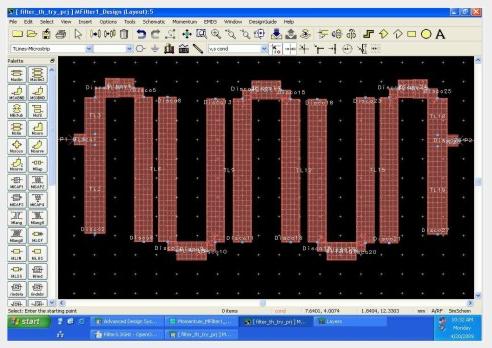

In order to realize cutting edge high reliability products, we have a broad range of expert professionals in areas such as in Advance Design Software (ADS by Agilent), and other design & simulation tools. Specialists are also deployed for handling MMIC Die packages, wire bonding processes and product integration. The product testing is supported by test and measurement equipment like signal generators, spectrum analyzers, scalar and vector network analyzers, power meters, noise figure meters, etc.

Some good development practices that are followed stringently are Impedance Matching for RF designs by exporting to CAD from ADS, incorporating other board elements, and, importing back to ADS, for testing RF areas of the product. We also employ time tested heuristics and design practices for Derating, Thermal and Signal Integrity Analysis. Standard in-house design practices and procedures reduce design risk and improve turn-around-time.

Our portfolio includes:
  • Transmit/ Receive Module in VHF, L, S, C and X Band applications
  • Frequency Synthesizer Modules in VHF, L, S and X Band applications
  • Transponder and Interrogator Modules for IFF applications
  • Receivers, Up and Down Converter Modules upto Ku Band
  • Wide Band RF Tuners
  • High Power Amplifiers in VHF, UHF upto Ku Band
  • Power Combiners, Dividers and Couplers.
  • Parabolic reflector and Mono pulse patch antennae for X Band applications
  • Modulator and Demodulator for Satellite applications
  • Software Defined Radio (SDR) product

Our team constantly keeps abreast with advancements in RF & Microwave products, so if you have a demanding Microwave/ RF requirement that is contemporary; it’s more than likely that we are the people who can deliver.
