VXI

VXI stands for VME eXtensions for Instrumentation. It is an open standard first developed by five leading Test and Measurement companies in 1987 to standardise a backplane capable of developing open, interchangeable instrument modules that could be used to build Automatic Test Equipment (ATE).

Data Patterns designs and markets a wide range of VXI modules, some of which are listed below. Due to the use of the latest technologies, Data Patterns VXI modules offer the highest I/O density available in the industry today.

Further enhancements of functional capabilities are achieved by the use of VXI IP carriers and VXI M Module carriers. This extends standard functions available from Data Patterns in these mezzanine architectures to the VXI platform.

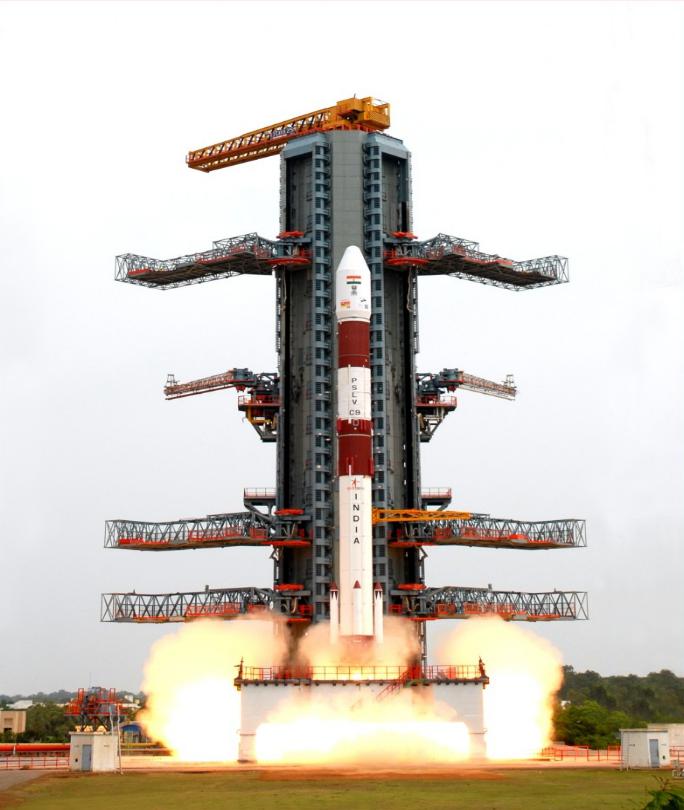

Data Patterns' VXI modules are utilized in high reliability applications such as Count Down Checkout System for the First and Second Launch Pads at Satish Dhawan Space Centre SHAR operated by Indian Space Research Organisation (ISRO).

A list of products is given below.

Product Name Description View
DP-VXI-110164 Channel 100 KHz 16 Bit ADC Module
DP-VXI-3099256 Channel Digital Input / Interrupt Output Module
DP-VXI-3117128 Channel Isolated Digital Input / Interrupt Module
DP-VXI-401780 Channel Relay Multiplexer

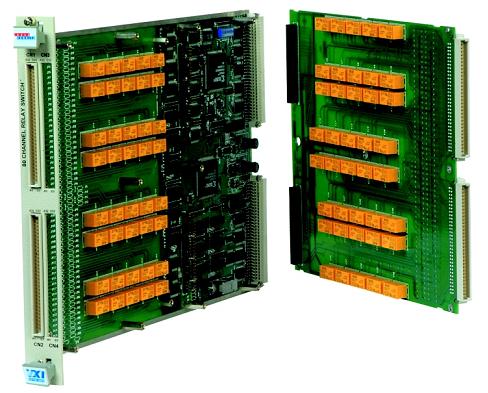

DP-VXI-450380 Channel Relay Switch
DP-VXI-510632 Channel Analog Comparator Module
DP-VXI-5124VXI IP Carrier Module
